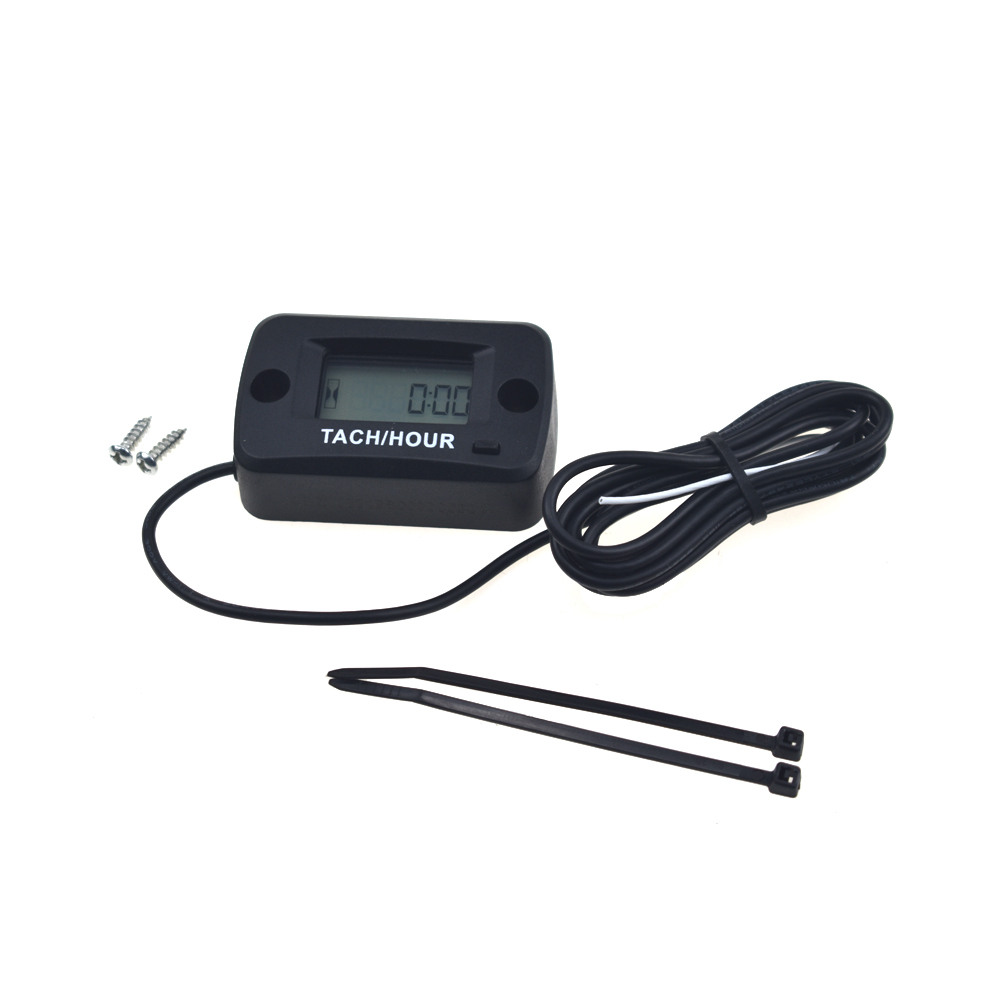

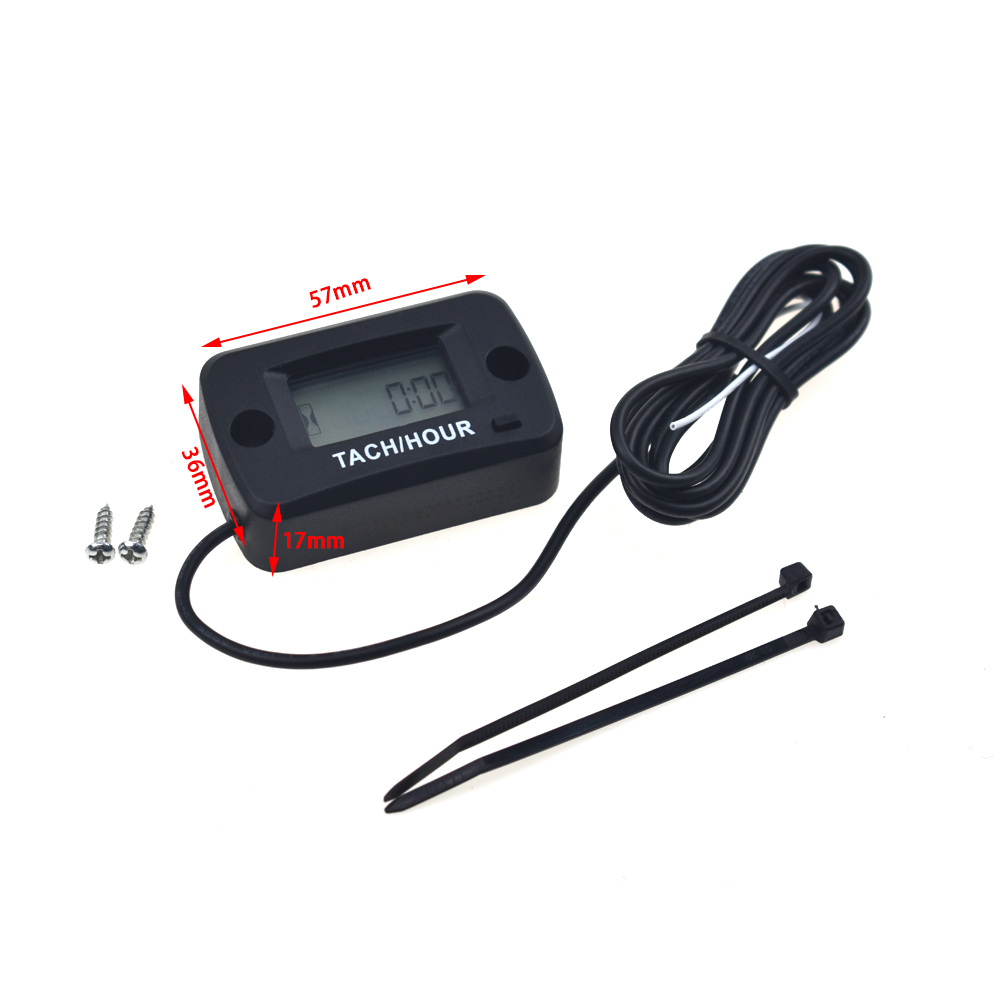

Settable Waterproof Inductive Tachometer Hour Meter For Motorcycle,ATV,Jet Ski,Snowmobile,Mower



  • 100% Brand new and high quality.
  • The induction wire is in full contact with the spark plug.
  • The maximum speed is 30000.
  • The maximum timing time is 999999.
  • Automatic recording of maximum speed.
  • The default time of cleaning air filter is 20 hours, and it is 20 hours after reset .
  • The default time for cleaning the oil filter is 30 hours, and it is 30 hours after reset.
  • The setting range of maintenance time is 0-1000 hours.
  • Use for:Motorcycle,ATV,Marine or any gasoline 2/4 stroke.
  • Speed type:1P1R=1 spark per revolution;2P1R=2 spark per revolution;3P1R=3 spark per revolution;4P1R=4 spark per revolution;6P1R=6 spark per revolution;8P1R=8 spark per revolution;3P2R=3 spark per 2 revolution;5P2R=5 spark per 2 revolution;1P2R=1 spark per 2 revolution.
  • Maintain Reminder function: the user can press the key to enter the setting mode under the maintenance reminder interface, and then the product can be operated.
  • When the cumulative working time reaches the user-defined setting time,The product will prompt the maintenance reminder.
  • The timing mode with reminder is countdown.
  • The product has the function of total timing, the total timing time cannot be cleared.
  • The product has the functions of single time cumulative timing 1 and single time cumulative timing 2. Long press the key in these two interfaces 2 seconds can clear the current timing time.


  • No power required-included CR2430 battery sealed inside.
  • Works on any gas engine.
  • Indicates operation in PRMs and Hours.
  • Resettable for current JOB time;total time not resettable.
  • 9 programmable firing patterns.
  • Record max RPM of engine.
  • programmable maintenance interval timer (SVC).
  • programmable Clean air filter timer.
  • programmable CHG oil timer.
  • Easy installation-includes double sided tape,screws,and fasteners.
  • Waterproof-IP68 Rating.

Hour meter installation method:

  • Select a contact point from the inductive pick-up line to the spark plug.The motorcycle is installed in the frame node on both sides of the steering column belt or screw on both sides.Note: do not install the product in an environment above 125 degrees
  • Mounting holes drill 1.750 inch apart center to center ,Drill two holes 7/64 inch. Don't use the oil pressure Drill holes in the crankcase of recoil cylinder, oil tank and engine
  • Wrap the other end of the signal wire around the spark plug wire for 3-5 turns and use a cable tie the end. If installed correctly, the hourglass on the LCD will flash and start timing automatically.


Brand XYT
Shipping Weight 0.0900kg
Shipping Width 0.112m
Shipping Height 0.028m
Shipping Length 0.190m
Shipping Cubic 0.000595840m3
Unit Of Measure ea
